Vacuum Valves

These vacuum operated fuel valves have the highest fuel flow of any vacuum style fuel valve on the market. It uses the same safety feature as an OEM valve - when left in the on position and the motor is off the fuel valve will shut off as well.

The same high quality as the rest of our Power-Flo line with a show chrome finish. Choose a hex or round design. In let is 22mm (for H-D) and includes adapter nut.

1000 Series   4000 Series   6000 Series

1000 Series valve - If the valve is mounted on the left side, the hose outlet faces forward. If mounted on the right side, the hose outlet faces rearward.

4000 Series valve - If the valve is mounted on the left side, the hose outlet faces rearward. If mounted on the right side, the hose outlet faces forward.

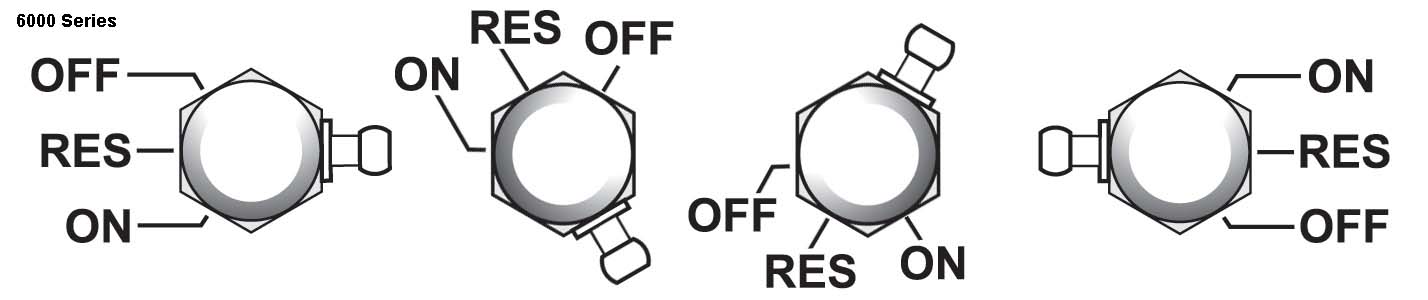

6000 Series valve - A universal configuration that can be used in almost any tank location. This valve can be installed with the hose barb pointing in any direction that leaves the on/res/off lever accessible.

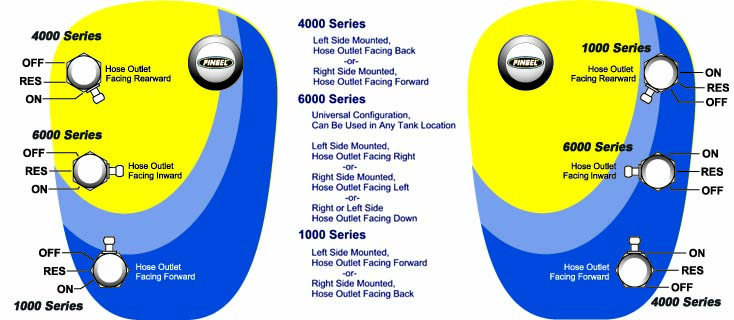

Pingel Power-Flo™ Application Chart
